Above Ground Grease Traps for use with Bio-Remediation


The Hygienic device is manufactured in austenitic AISI304 1.5mm Stainless Steel. The air sealed units are designed to be environmentally friendly and to compliment removal at source waste policies. The easy fit lid comes with clips to allow full access for cleaning. A 50mm - 54mm mechanical pipe connection is fitted as standard. Holes through walls for the outlet pipe must be lower than the trap outlet. Care must be taken to ensure stays on catering benches do not obstruct the inlet/outlets.

AG1 Grease Trap
Flow Rate Ltrs/min Fat Retention (KG) Capacity Ltrs Inlet Outlet
27 27 53 50mm 50mm
ag1
AG3 Grease Trap
Flow Rate Ltrs/min Fat Retention (KG) Capacity Ltrs Inlet Outlet
143 215 287 110mm 110mm
ag3




AG 1.5 Grease Trap
Flow Rate Ltrs/min Fat Retention (KG) Capacity Ltrs Inlet Outlet
50 45 75 50mm 50mm
ag1 .5
AG4 Grease Trap
Flow Rate Ltrs/min Fat Retention (KG) Capacity Ltrs Inlet Outlet
370 662 741 110mm 110mm
ag4


AG1 Twin Outlet
Grease Trap
Flow Rate Ltrs/min Fat Retention (KG) Capacity Ltrs Inlet Outlet
57 67 115 50mm 50mm
ag1 twin outlet
AG5 Grease Trap
Flow Rate Ltrs/min Fat Retention (KG) Capacity Ltrs Inlet Outlet
567 1069 1134 50mm 50mm
ag5
AG2 Grease Trap
Flow Rate Ltrs/min Fat Retention (KG) Capacity Ltrs Inlet Outlet
57 67 115 50mm 50mm
ag2


























AG3K Grease Trap
Flow Rate Ltrs/min Fat Retention (KG) Capacity Ltrs Inlet Outlet
96 117 191 50mm 110mm
ag3k





























Bio Grease Separator

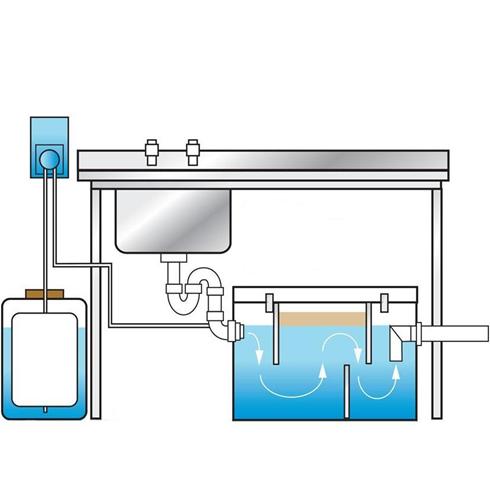

Typical Installation

Automatic dosing pump & Control Unit

Inject Aluzyme at a preset daily time.
Normally set to inject at the end of a working day.

Grease Trap
Retained fats and grease are digested by Aluzyme allowing maximum efficiency of the drainage system and pipes.

Inject Point
For Aluzyme solution ideally positioned at the point of the grease trap.

Exit Point of the grease trap. Aluzyme solution continues to work, forming a bio film on the inernal surface areas of the drainage system. The bio film enhances the breakdown of solids attached to the internal pipe work area preventing reduced flow, foul odours and blockages occurring.

Aluzyme

dosing pump controlGrease Trap Stands & Accessories

Contact Aluline for FREE comprehensive operating instructions and advice.
